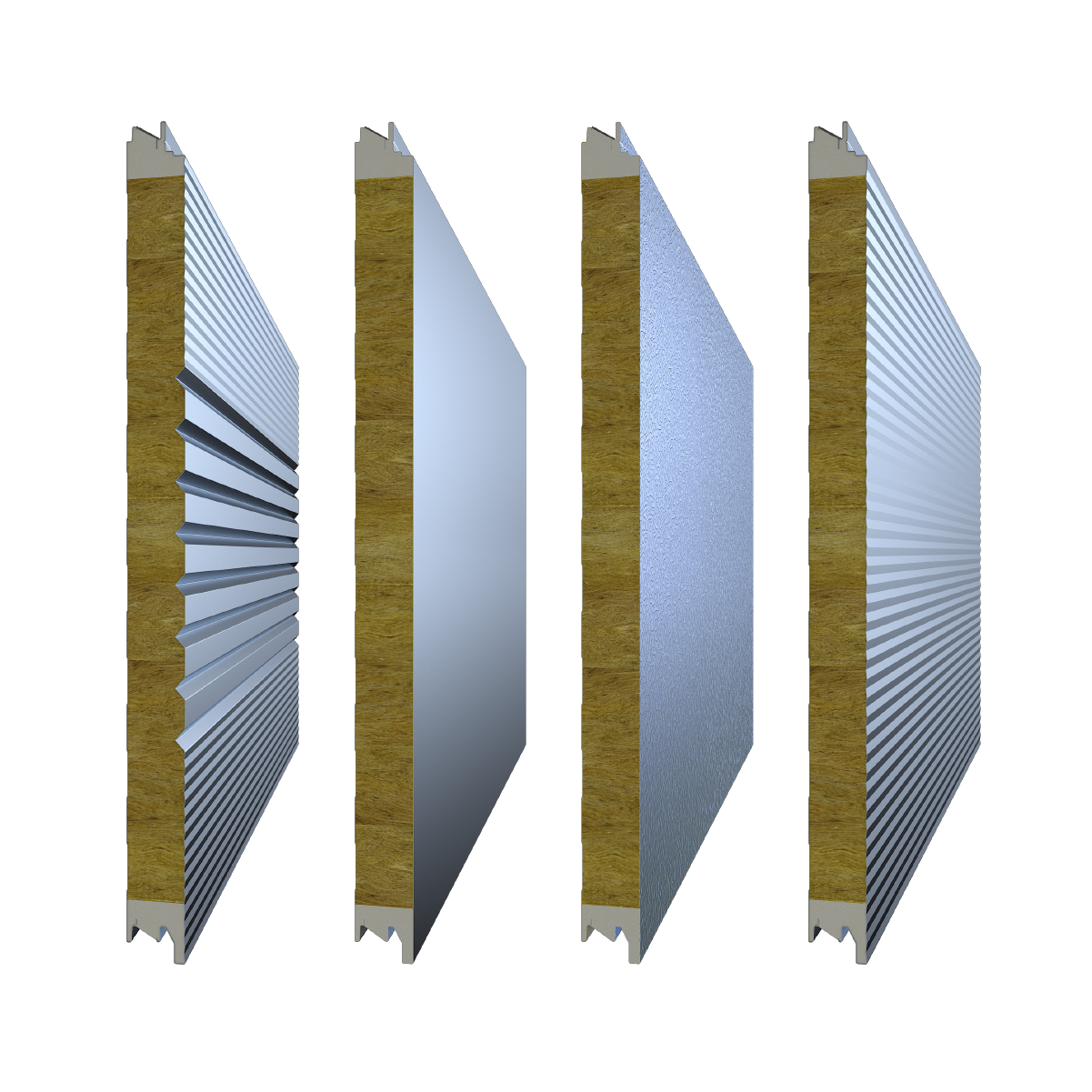

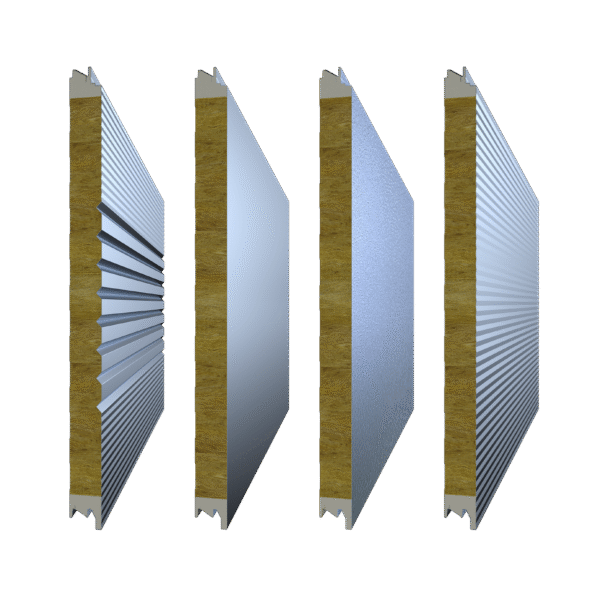

This kind of Rockwool+PU sandwich panel is simple, fashionable, elegant and graceful and has graduated layers and a strong three-dimensional sense to create a rhythmic effect of light and shadow.
Patent No.: ZL 2001 3 0108109.4
| Payment | TT/LC |
|---|---|
| Product Origin | Shandong Province, China |
| Color | Customized as your request |
| MOQ | 1000 square meters |
| Shipping Port | Qingdao Port, China |
| Lead Time | 20-30 days after receiving your deposit |
1 Product Parameters
| Brand of steel plates: | Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel. |
| Painting of steel plates: | PVDF, SMP, HDP, PE; The top painting should be above 25μm. |
| Galvanized layer of steel plates: | Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³. |
| Thickness of steel plates: | 0.4mm-0.8mm. |
| Thickness of core: | 50mm/75mm/100mm/150mm |
| Density of core: | Rockwool:≥120kg/m³; Glasswool: 64kg/m³; PU: 40-50kg/m³ |
| Effective width: | 1000mm |
| Panel Length: | According to customers’ request |
2 Product Description
1.The same board performance double effect, creating a rich melody of light.
2.Eight V-shaped deep trench reinforcement, higher board strength.
3.Patented product appearance, just for your uniqueness.
If you are interested in any of our products, please feel free to contact us. We are looking forward to your cooperation.
